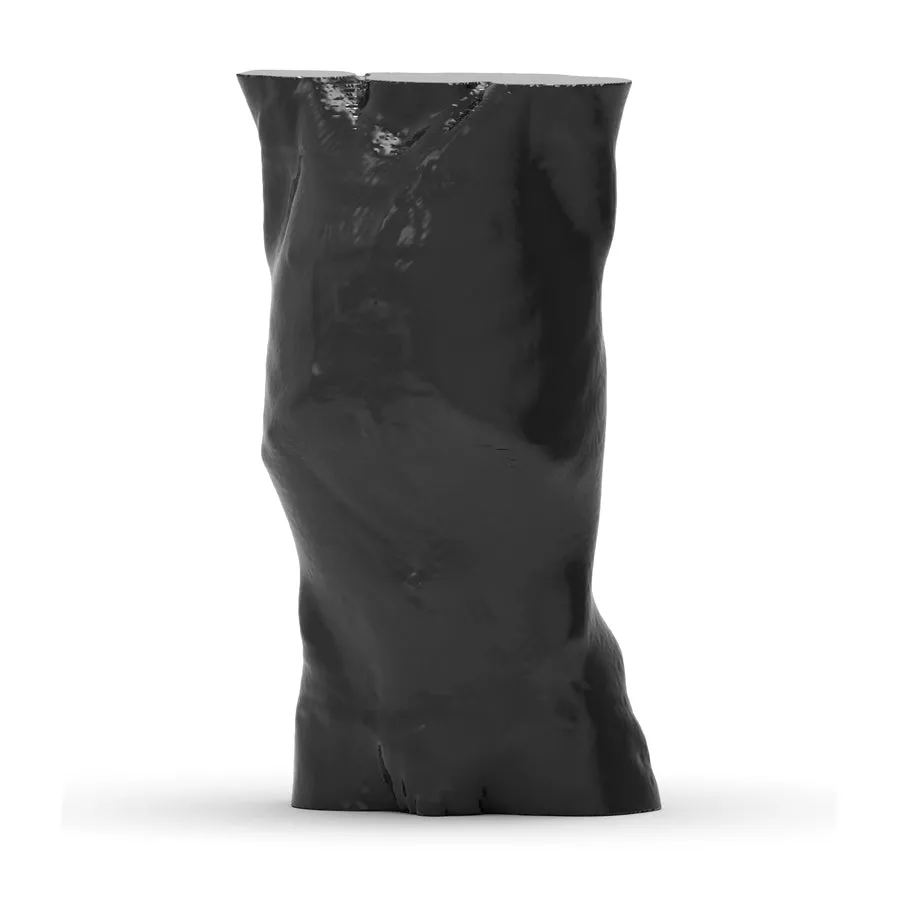

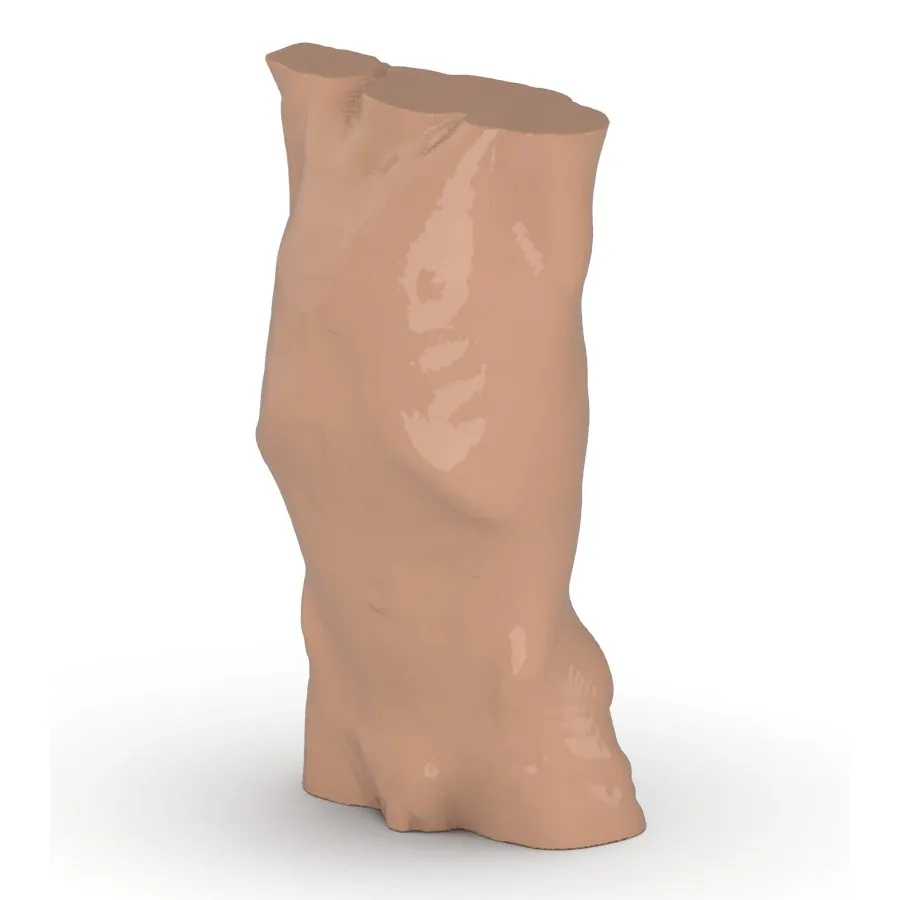

Child Torso Phantom - 3-Year-Old
This phantom simulates a 3-year-old child's contrast medium enhanced thorax, abdomen and pelvis in portal venous
phase. It covers the sixth cervical vertebra to the perineum.

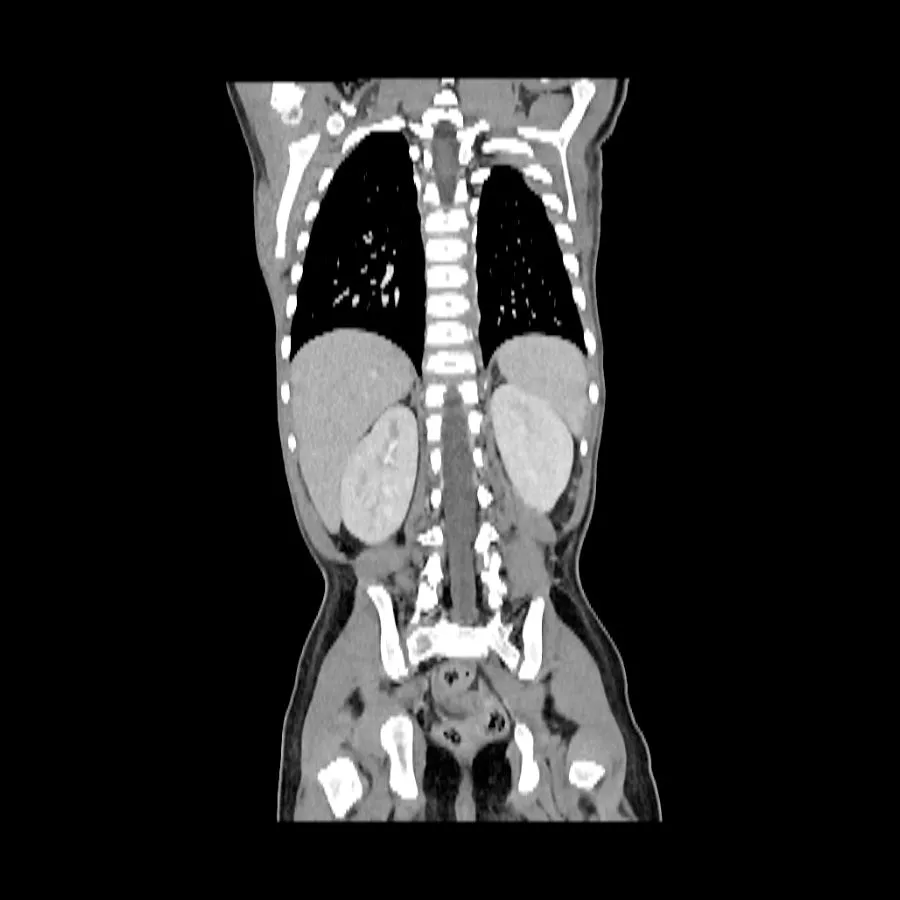

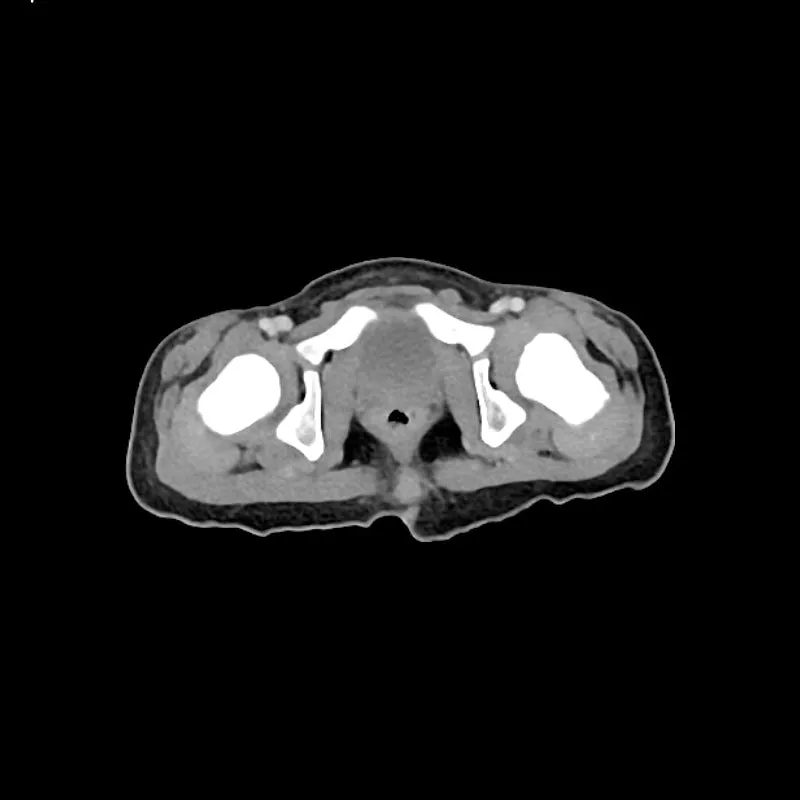

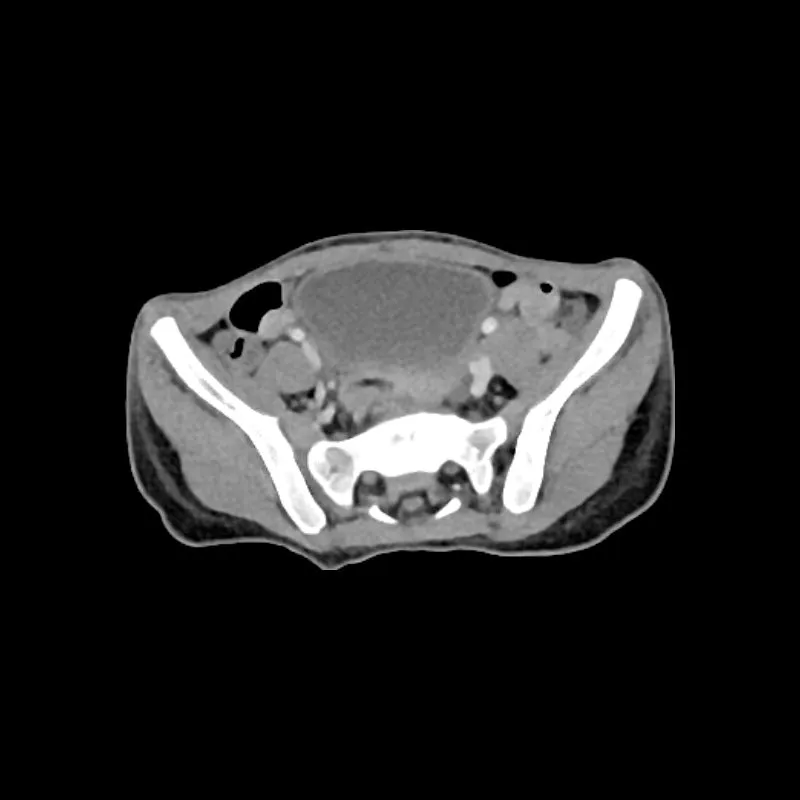

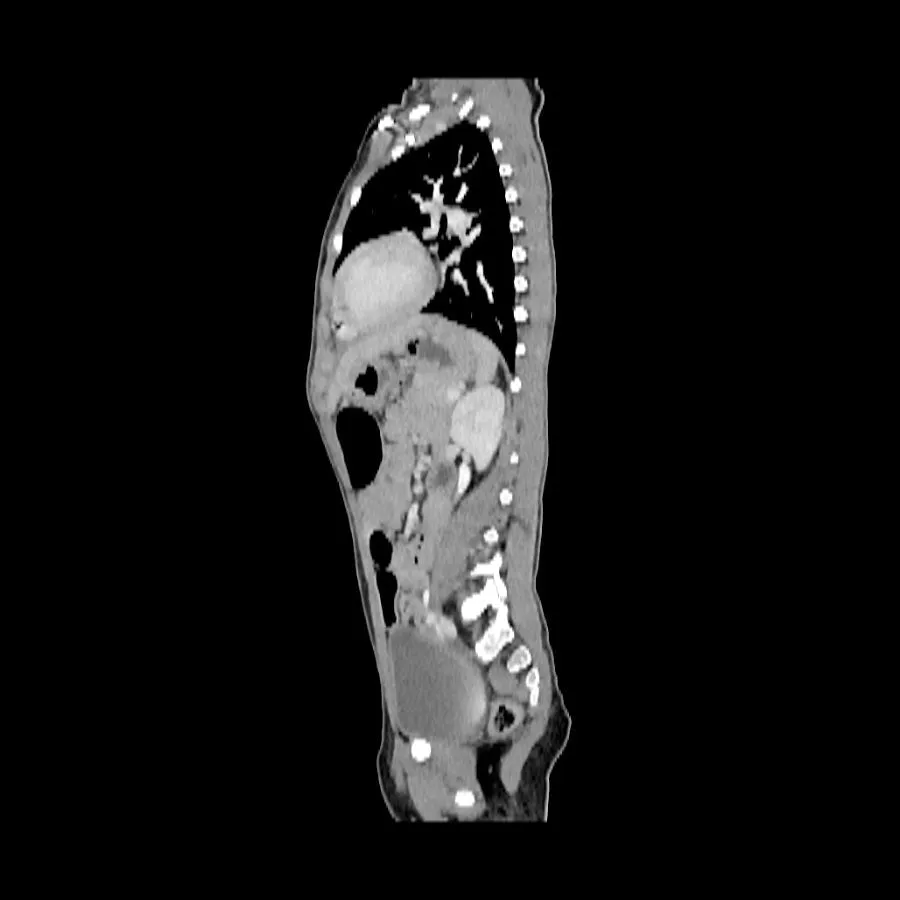

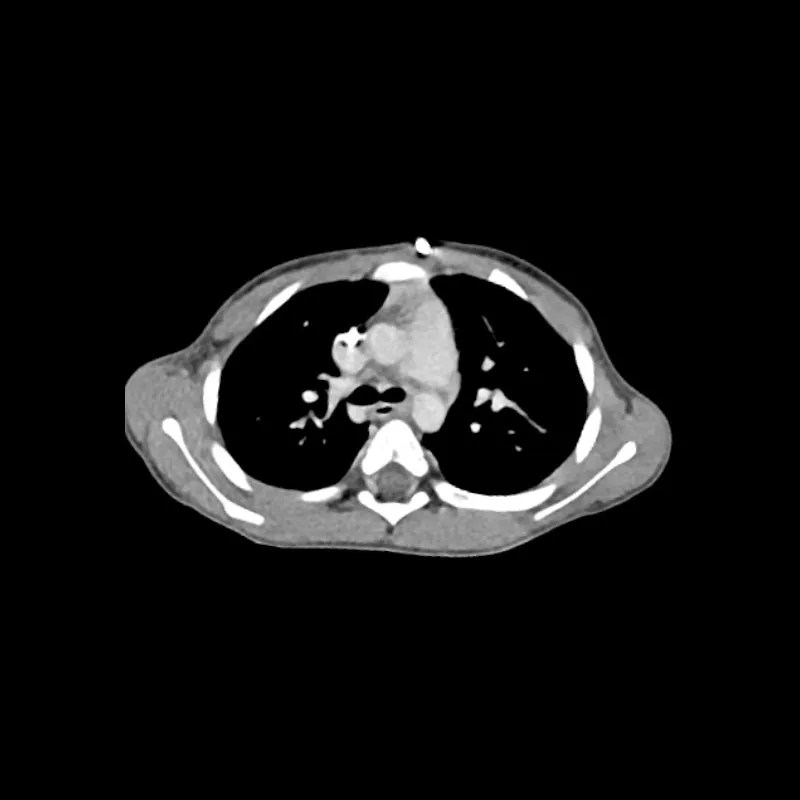

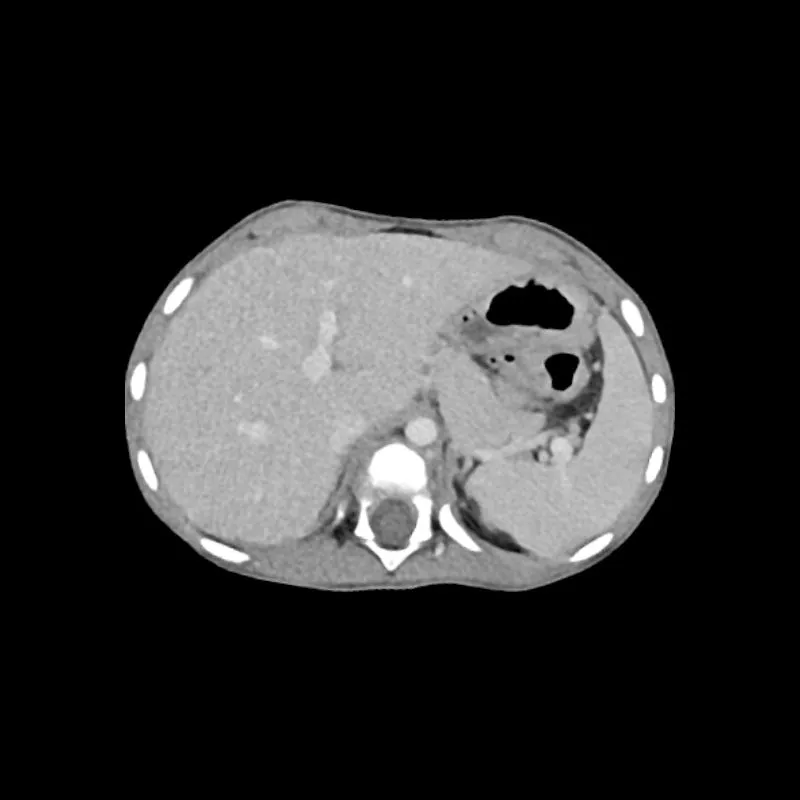

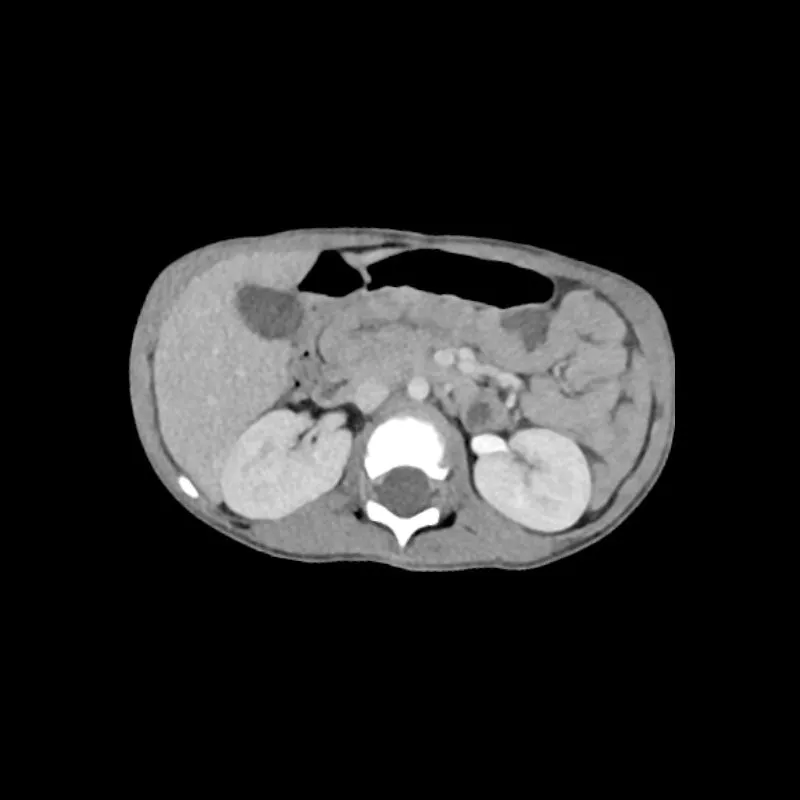

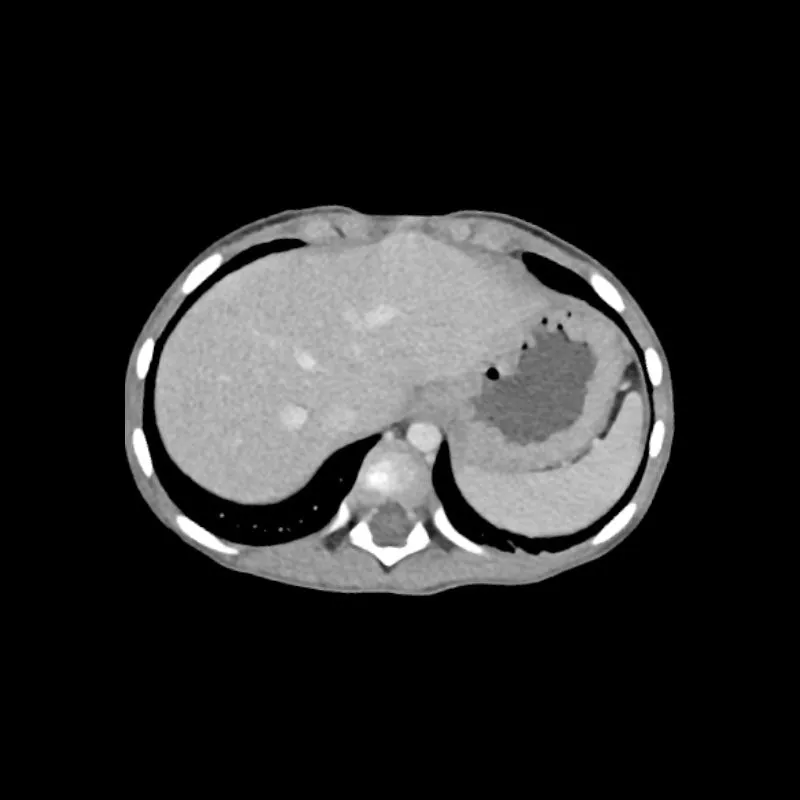

The phantom can be used in CT (including CBCT) and X-ray imaging to evaluate and optimize imaging performance and
post-processing applications, including AI-enabled applications. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids including those of the
lungs are filled with a cellulose-polymer composite of approx. -160 HU.
-
SPECIFICATIONS:
- Size: Approx. 24 x 14 x 40 cm
- Weight: Approx. 6.3 kg
- Base material: Cellulose-polymer composite
- Optimal tube voltage: 100 kVp – (adaptable upon request)
-
Realistic simulation of vasculature, bone and soft tissues, including:
- Lungs
- Heart
- Liver
- Gallbladder
- Pancreas
- Spleen
- Adrenals
- Kidneys
- Stomach
- Small intestine
- Colon
- Bladder
-
General indications:
- The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
- The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
- Protect from direct sunlight.
- Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
- The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
- The phantom is not certified as medical device.
- Air voids are filled with cellulose-polymer composite of approx. -160 HU.
Made by PhantomX and sold by GTSimulators.
