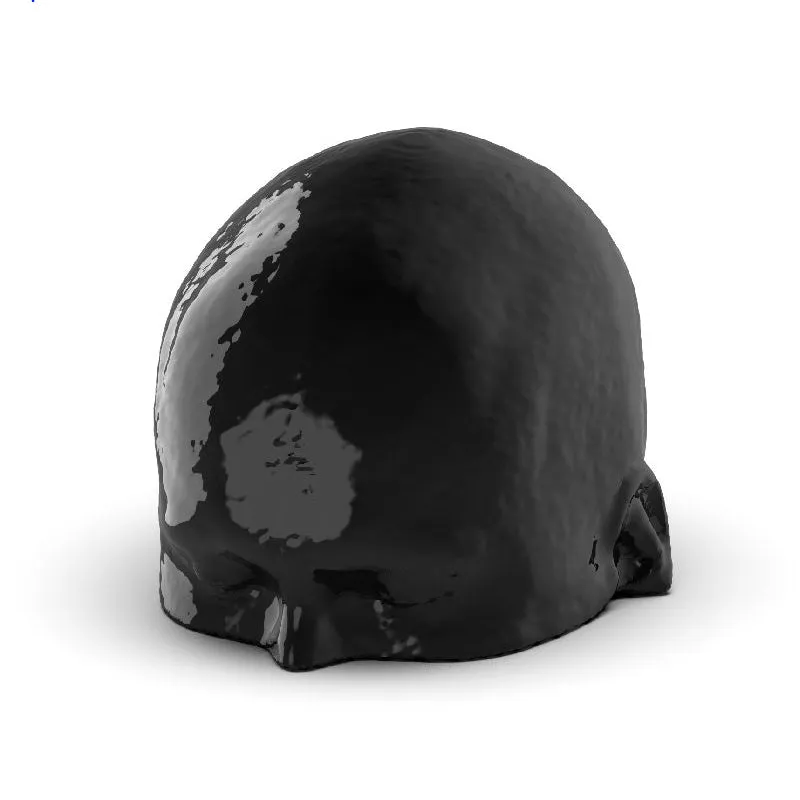

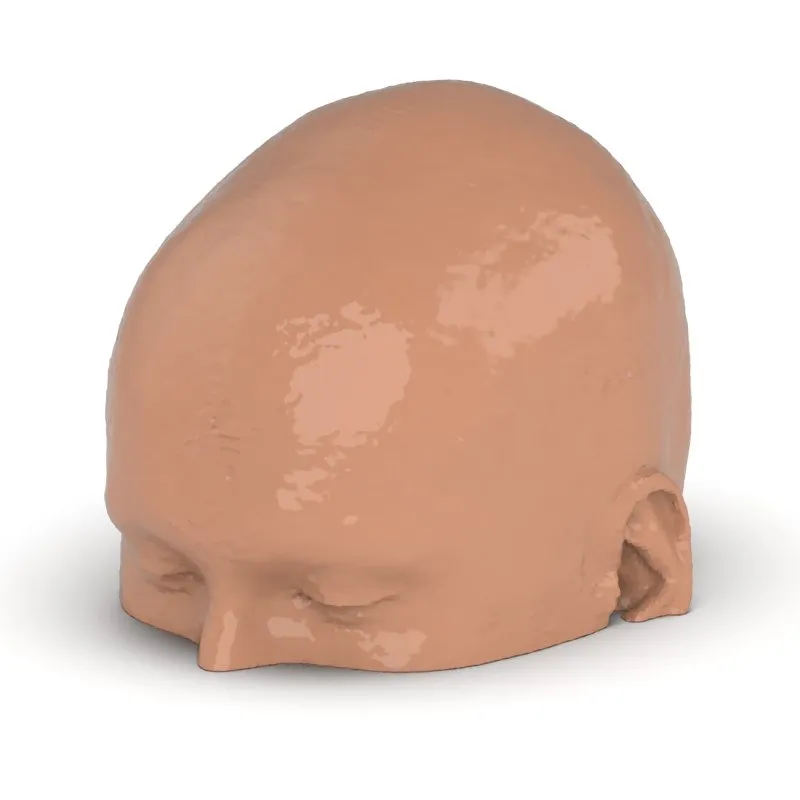

Head Phantom - CTA AVM
This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). It covers the vertex to
the foramen magnum.
The right hemisphere has an arteriovenous malformation.
The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled
diagnosis. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue, including
small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.
-
SPECIFICATIONS:
- Size: Approx. 19 x 22 x 16 cm
- Weight: Approx. 3.17 kg
- Base material: Cellulose-polymer composite
- Optimal tube voltage: 120 kVp – (adaptable upon request)

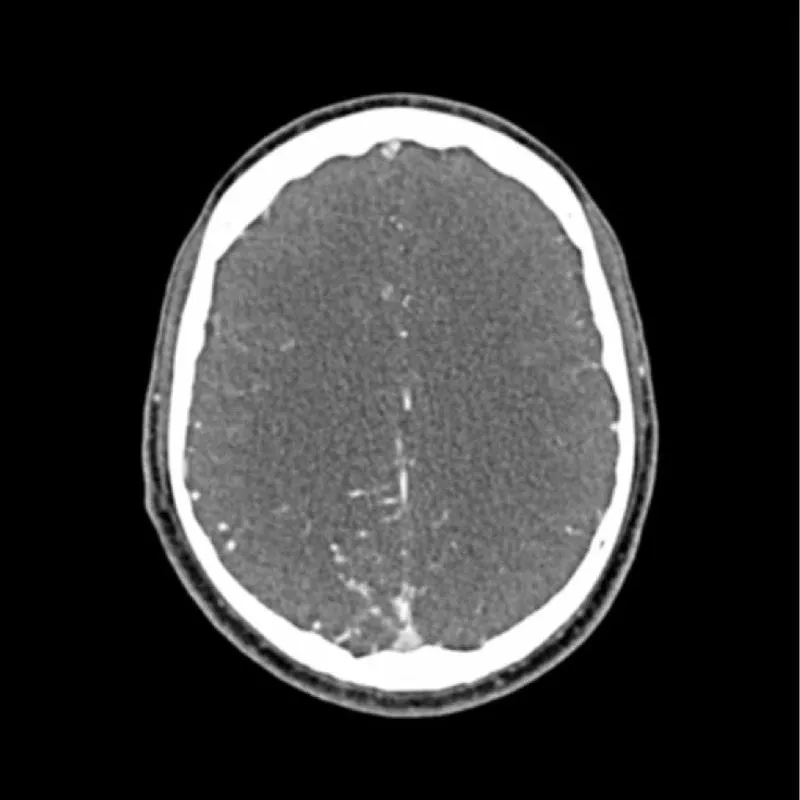

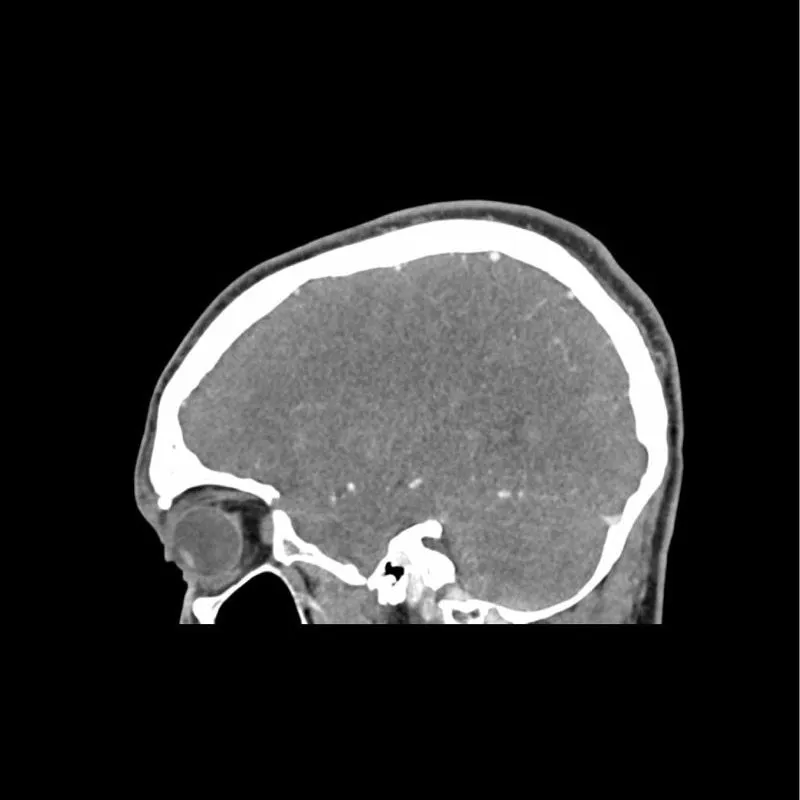

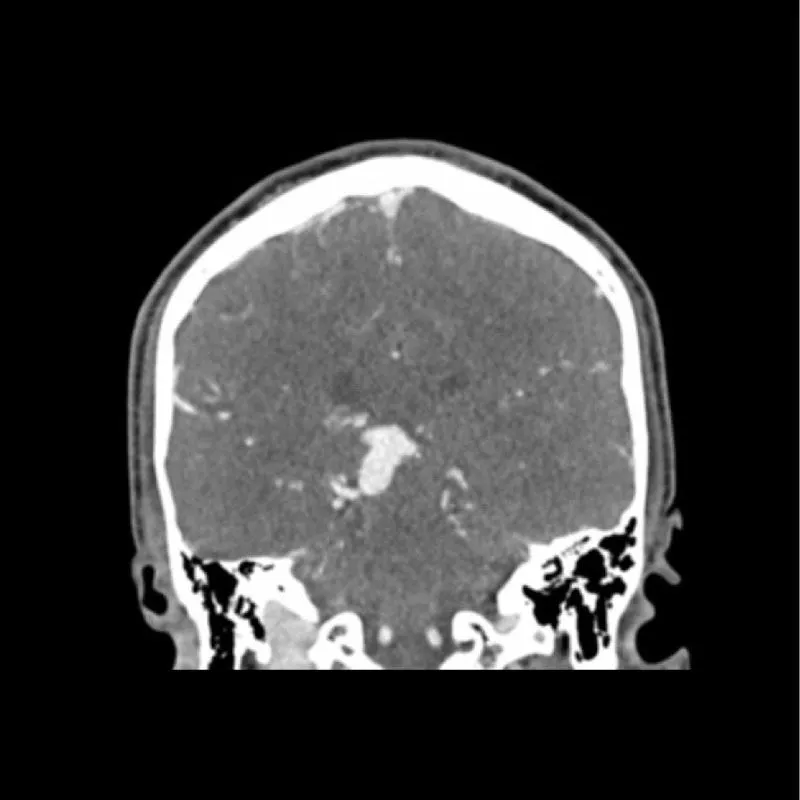

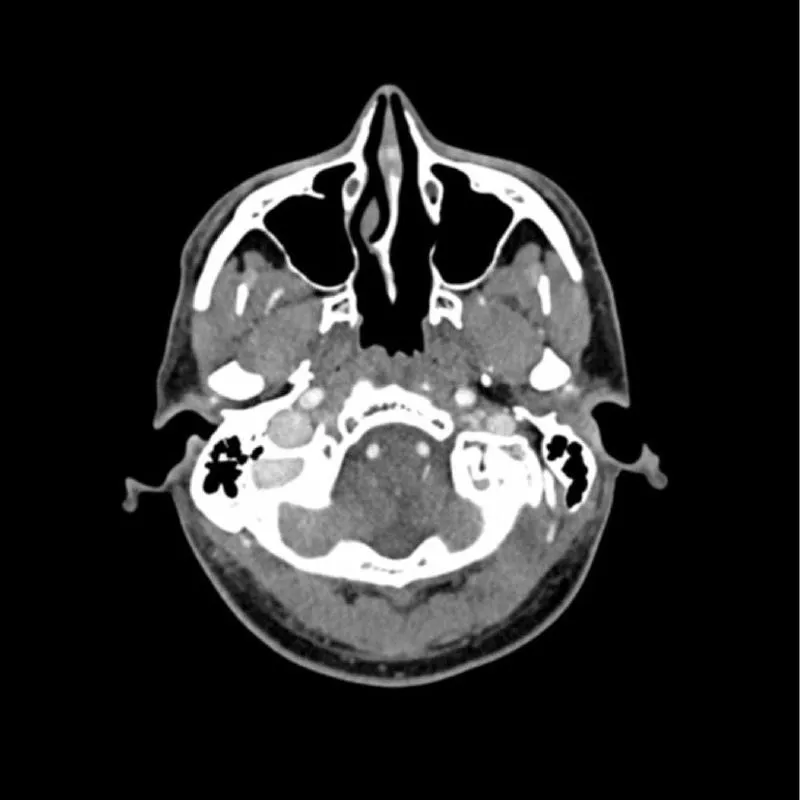

Realistic simulation of head vessels, bone and soft tissues.

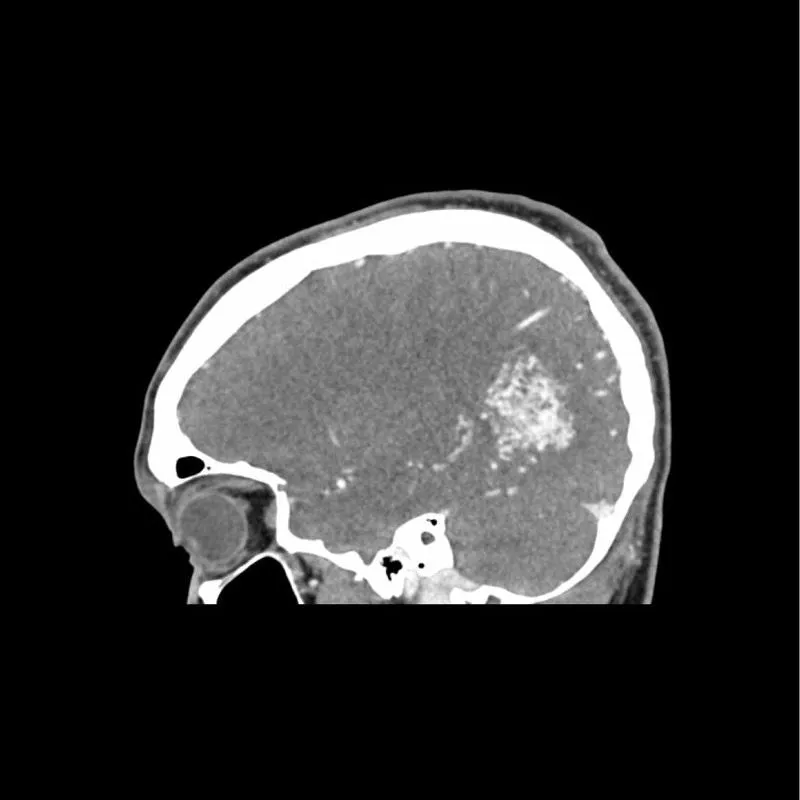

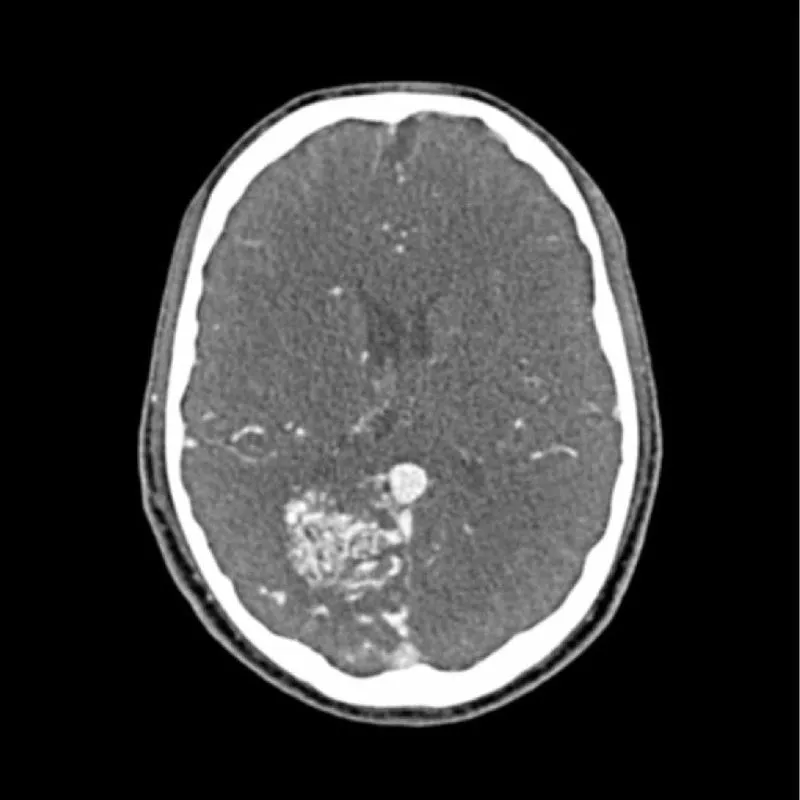

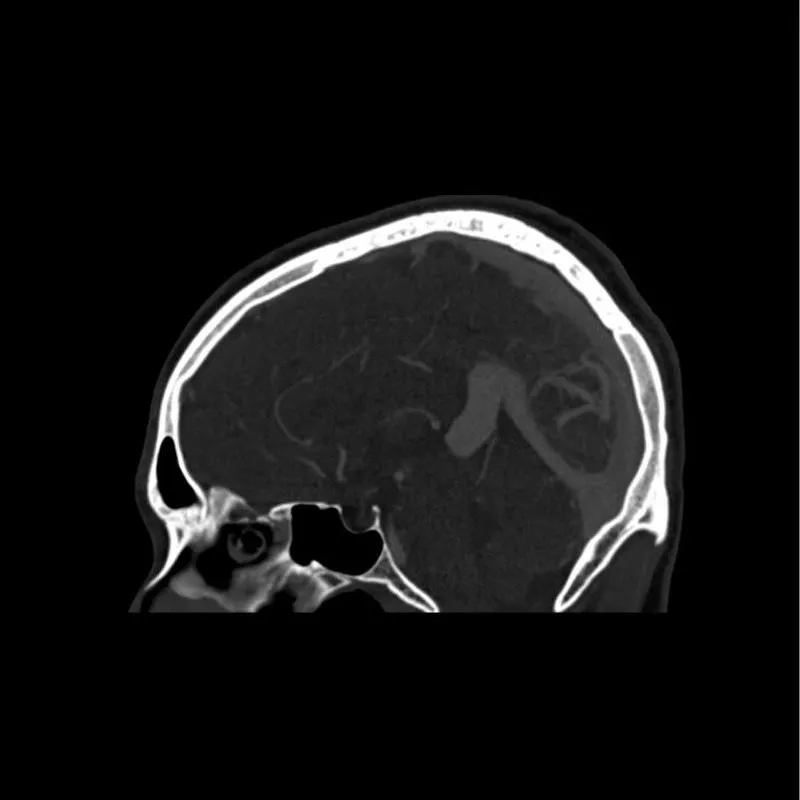

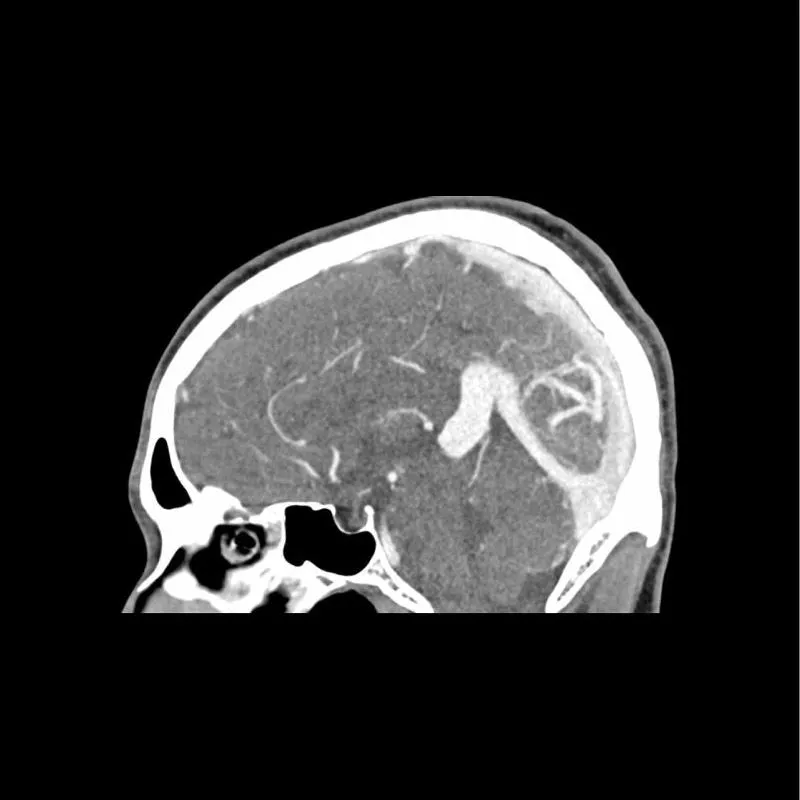

Arteriovenous malformation of the right hemisphere.
-
General indications:
- The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
- The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
- Protect from direct sunlight.
- Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
- The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
- The phantom is not certified as medical device.
- Air voids are filled with cellulose-polymer composite of approx. -160 HU.
Made by PhantomX and sold by GTSimulators.
